ROHM Semiconductor AEC-Q101 SiC Schottky Barrier Diodes

ROHM Semiconductor AEC-Q101 SiC Schottky Barrier Diodes deliver breakdown voltages from 600V, far exceeding the upper limit for silicon SBDs. The AEC-Q101 Diodes utilize SiC, making them ideal for PFC circuits and inverters. Additionally, high-speed switching is enabled with ultra-small reverse recovery time. This minimizes both reverse recovery charge and switching loss, contributing to end-product miniaturization. ROHM AEC-Q101 SiC Schottky Barrier Diodes offer a reverse voltage range of 650V to 1200V, a continuous forward current range of 1.2µA to 260µA, and a total power dissipation range between 48W to 280W. The devices are available in TO-247 and TO-263 packages, with a max temperature of +175°C.

Features

  • AEC-Q100 qualified for automotive applications
  • Reduced temperature dependence
  • High-speed switching
  • Low switching loss
  • Shorter recovery time

Applications

  • Automotive
  • Switch-mode power supplies
  • Solar inverters
  • UPS
  • EV chargers

Videos

Resources

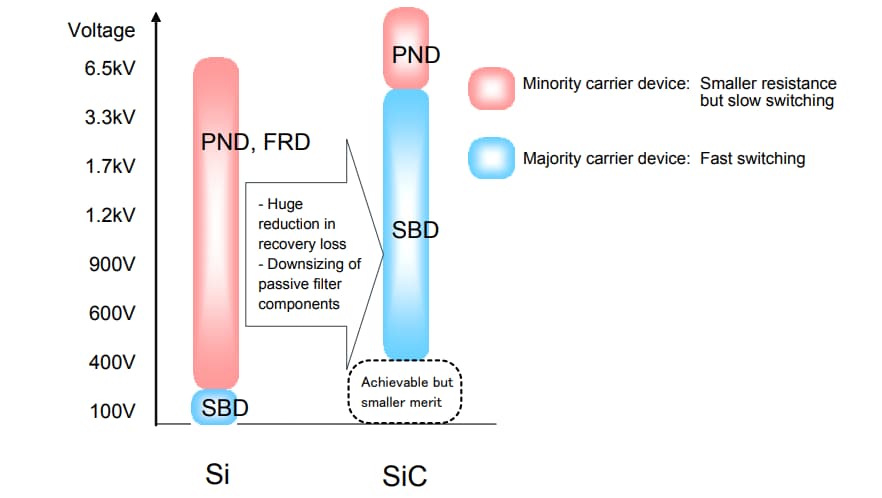

SBD Voltage Chart

Chart - ROHM Semiconductor AEC-Q101 SiC Schottky Barrier Diodes

Related Products

ROHM Semiconductor Silicon Carbide (SiC) Power Devices

SiC power devices deliver significantly higher performance than the Silicon counterparts.

Learn Moreo ROHM Semiconductor Silicon Carbide (SiC) Power Devices View Productspowiązany z ROHM Semiconductor Silicon Carbide (SiC) Power Devices

ROHM Semiconductor TO-220ACG SiC Schottky Barrier Diodes

Reverse voltage range of 650V to 1200V and a continuous reverse current range of 1.2µA to 20.0µA

Learn Moreo ROHM Semiconductor TO-220ACG SiC Schottky Barrier Diodes View Productspowiązany z ROHM Semiconductor TO-220ACG SiC Schottky Barrier Diodes

ROHM Semiconductor AEC-Q101 SiC Power MOSFETs

Can be used to boost switching frequency, reducing the size of the external components.

Learn Moreo ROHM Semiconductor AEC-Q101 SiC Power MOSFETs View Productspowiązany z ROHM Semiconductor AEC-Q101 SiC Power MOSFETs

ROHM Semiconductor SiC Schottky Barrier Diodes

Lower capacitive charge reduces switching loss, enabling high-speed switching operation.

Learn Moreo ROHM Semiconductor SiC Schottky Barrier Diodes View Productspowiązany z ROHM Semiconductor SiC Schottky Barrier Diodes
View Results ( 10 ) Page
Numer części Karta charakterystyki If – prąd przewodzenia diody Ifsm – prąd udarowy przewodzenia Ir – Prąd wsteczny Opakowanie/obudowa
SCS208AJHRTLL SCS208AJHRTLL Karta charakterystyki 8 A 30 A 160 uA TO-263AB-3
SCS220AE2HRC11 SCS220AE2HRC11 Karta charakterystyki 20 A 76 A 200 uA TO-247N-3
SCS240AE2HRC11 SCS240AE2HRC11 Karta charakterystyki 40 A 130 A 400 uA TO-247N-3
SCS210KE2HRC11 SCS210KE2HRC11 Karta charakterystyki 10 A 45 A 100 uA TO-247N-3
SCS206AJHRTLL SCS206AJHRTLL Karta charakterystyki 6 A 23 A 120 uA TO-263AB-3
SCS210AJHRTLL SCS210AJHRTLL Karta charakterystyki 10 A 38 A 200 uA TO-263AB-3
SCS215AJHRTLL SCS215AJHRTLL Karta charakterystyki 15 A 52 A 300 uA TO-263AB-3
SCS212AJHRTLL SCS212AJHRTLL Karta charakterystyki 12 A 43 A 240 uA TO-263AB-3
SCS220AJHRTLL SCS220AJHRTLL Karta charakterystyki 20 A 68 A 400 uA TO-263AB-3
SCS220KE2HRC11 SCS220KE2HRC11 Karta charakterystyki 20 A 84 A 200 uA TO-247N-3
Opublikowano: 2019-03-22 | Zaktualizowano: 2024-01-24
