Melexis IC Solutions for Robotics
Melexis IC Solutions for Robotics are expertly crafted to meet the dynamic needs of both industry and society. Explore the latest Melexis advancements in automation, designed to enhance efficiency, precision, and adaptability across various applications. Magnetic and inductive solutions provide exceptional accuracy, flexibility, and durability, ensuring robots have optimal sensors. Current sensors offer precise measurements and robust isolation, promoting efficient and safe operations. Infrared sensor arrays facilitate temperature monitoring, hot spot detection, and people detection. Advanced BLDC motor drivers deliver precise linear and rotary actuation, ideal for applications such as robotic joints and fingers. Additionally, some solutions are Robot-Operating-System (ROS) compliant, integrating Melexis expertise in magnetic sensing, signal conditioning, and onboard diagnostics for functional safety, automotive-grade quality, and advanced packaging.
Features
- Position sensor ICs
- Ease of integration
- Stray field immunity
- Cost-effective
- Magnetic or inductive
- Current sensor ICs
- DC to 300kHz
- Ease of integration
- Stray field immunity
- Temperature sensor ICs
- Arrays up to 32x24
- I2C interface
- Privacy preservation
- Motor driver ICs
- Driver (<40W) and pre-driver (<500W)
- 12V, 24V, and 48V options
- SPI, I2C, and UART interfaces
Applications
- Cobots
- Humanoid robots
- Robomowers
- Service/wearable robots
Main Humanoid Block Diagram

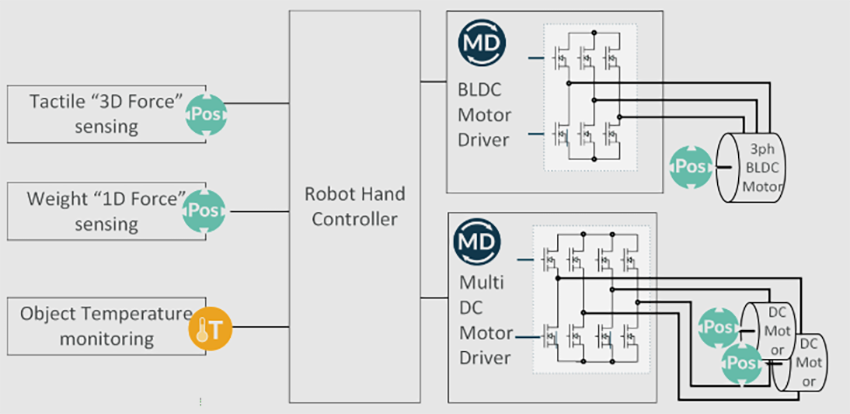

Robotics Hand Block Diagram
Videos
Featured Position Sensor ICs
Melexis MLX75026 QVGA Time-of-Flight Image Sensors
Features DepthSense® pixel, integrated microlenses, and backside illumination (BSI technology).
Melexis MLX90381 3D Magnetic Resolvers
Measure rotational speeds of 50’000 e-rpm (Electrical at Hall plates).
Melexis MLX90394 Micropower Triaxis® 3D Magnetometer
3-axis magnetometer suitable for many position sensor applications using Triaxis Hall Technology.
Melexis MLX90513 Automotive Inductive Position Sensor
Engineered for absolute rotary & linear motion/position sensing in automotive & industrial apps.
Melexis MLX90517 High-Speed Inductive Resolver IC
Developed for e-machines (BLDC, PMSM, PMSR) used as traction or auxiliary motors.
Melexis MLX922xx Latch & Switch Sensors
Designed to offer faster, more accurate processing in a wide range of applications.
Melexis MLX92214 3-Wire Hall Latch & Switch
Offers a 2.5V to 5.5V low voltage supply, 2.1mA power switch, and ESD capability 6kV.
Melexis MLX92216 Hall-Effect Switches
Feature a unipolar direct south switch magnetic function and 90ms typical sleep time.
Melexis Układy scalone czujników magnetycznych MLX92235
Tiny automotive tiny devices made for micropower open-close detection in a TSOT-3L (SE) package.
Melexis Czujnik podwójnego zatrzasku z efektem Halla MLX92253
Integrates a voltage regulator, two Hall sensors, and two open-drain outputs in a single package.
Featured Current Sensor ICs
Melexis MLX91220 Current Sensors
Operates on a 5V supply, provide high common-mode field rejection through differential sensing.
Melexis MLX91221 Current Sensors
Operates on a 3.3V voltage supply, robust against external magnetic fields, integrated Hall effect.
Featured Temperature Sensor ICs
Melexis MLX90640 Far Infrared Thermal Sensor
Fully-calibrated 32x24 pixel thermal IR array in a compact, industry-standard, 4-lead TO39 package.
Melexis MLX90641 16 x 12 IR Array Sensors
Fully calibrated thermal IR arrays in a 4-lead TO39 package with a digital interface.
Melexis MLX90642 Thermal IR Sensors
Feature a 32x24 pixel matrix with a high Signal-to-Noise ratio (SNR).
Featured Motor Driver ICs
Melexis Arcminaxis© MLX90384 Sensors
Sensors comprise a four-component set for a high-accuracy magnetic encoder solution.
