Toshiba CUZ Series Zener Diodes
Toshiba CUZ Series Zener Diodes feature an ±12, ±20, or ±30 electrostatic discharge voltage and a small USC package. The CUZ Series has a 200mW and 600W power dissipation. The Toshiba CUZ Series Zener Diodes are ideal for voltage surge protection applications.
Features
- Small package
- Typical voltage of VZ is accorded to E24 series
- -55°C to 150°C Storage temperature

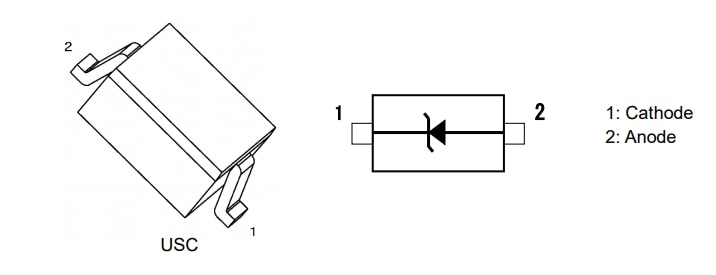

Packaging and Internal Circuit
Related Products
Toshiba CUZ Series 56V to 75V Zener Diodes
Silicon epitaxial planar Zener diodes, designed for voltage surge protection in electronic systems.
Toshiba CEZ Series Zener Diodes
Features a ±12, ±20, or ±30 electrostatic discharge voltage and a small ESC package.
Toshiba MSZ Series Zener Diodes
Features a ±12, ±20, or ±30 electrostatic discharge voltage and a small S-Mini package.
Toshiba MUZ Series Zener Diodes
Features a ±12, ±20, or ±30 electrostatic discharge voltage and a small USM package.
Toshiba Zener Diodes
Features an ±12, ±20, or ±30 electrostatic discharge voltage in a variety of packages.
View Results ( 10 ) Page
| Numer części | Karta charakterystyki | Prąd Zenera | Zz — impedancja Zenera | Vz - napięcie Zenera |
|---|---|---|---|---|
| CUZ12V,H3F |  |
100 nA | 30 Ohms | 12 V |
| CUZ16V,H3F | |
100 nA | 35 Ohms | 16 V |
| CUZ24V,H3F | |
100 nA | 70 Ohms | 24 V |
| CUZ30V,H3F | |
100 nA | 100 Ohms | 30 V |
| CUZ36V,H3F | |
100 nA | 100 Ohms | 36 V |
| CUZ5V6,H3F | |
1 uA | 30 Ohms | 5.6 V |
| CUZ6V2,H3F | |
2.5 uA | 30 Ohms | 6.2 V |
| CUZ6V8,H3F | |
1.5 uA | 30 Ohms | 6.8 V |
| CUZ8V2,H3F | |
100 nA | 30 Ohms | 8.2 V |
| CUZ20V,H3F | |
100 nA | 70 Ohms | 20 V |
Opublikowano: 2021-03-31
| Zaktualizowano: 2025-10-23
