Texas Instruments TPSM82903EVM Evaluation Module
Texas Instruments TPSM82903EVM Evaluation Module implements the evaluation of the TPSM82903 buck converter module in a small 3mm by 2.8mm MicroSiP™ package with an integrated inductor. The TPSM82903 is a high-efficiency, low IQ buck converter module for use in various industrial, enterprise, and personal electronics applications or any application with a 12V input voltage or a 1-cell to a 4-cell lithium battery pack.
The TI TPSM82903EVM evaluation module provides an output voltage of 1.2V from input voltages between 3V and 17V.
Features
- 4µA Iq
- 40mm2 total solution size
- 3V to 17V input voltage range
- 1.2V output voltage
- 3A output current

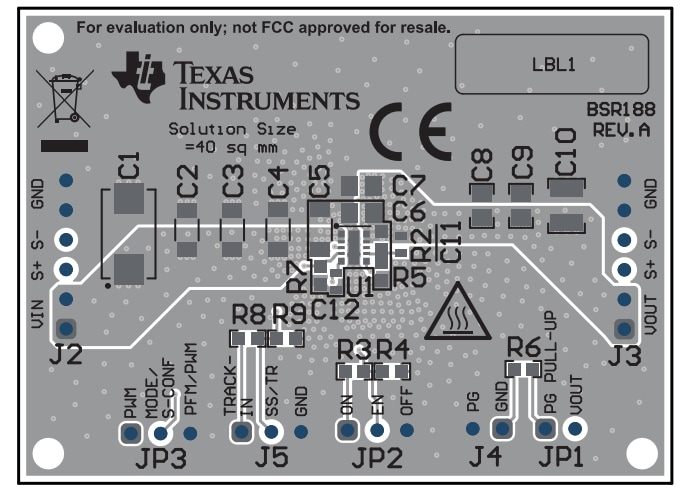

PCB Layout
Associated Products
Texas Instruments TPSM82903 Buck Converter
High efficiency and flexibility in a small MicroSiP package size that is easy to use.
Related Module
Texas Instruments TPSM82901EVM Evaluation Module
Designed to evaluate the 1A TPSM82901 step-down buck converter with an integrated inductor.
