Texas Instruments DS320-SLIMSAS-EVM Evaluation Module
Texas Instruments DS320-SLIMSAS-EVM Evaluation Module is a PCI-Express® 5.0 x16 to two x8 SlimSAS (SFF-8654) adapter. The DS320-SLIMSAS-EVM allows the DS320PR810-RSC-EVM and other TI PCI-Express 5.0 redriver riser card evaluation modules to interface up to four U.2 solid state drives (SSDs). This interface connects using commercially available SlimSAS (SFF-8654) to U.2 (SFF-8639) cable assemblies (not included). Interface to M.2 SSDs is also achievable using commercially available U.2 to M.2 adapter cards (not included).
Features
- Supports PCI-Express® 5.0 1 x4, 2 x4, and 4 x4 bifurcation
- Two x8 SlimSAS (SFF-8654) connectors
- LMK00334 PCI-Express® clock buffer
- Flexible assignment of PCI-Express® side band signals
Applications
- PCI Express Gen-1, 2, 3, 4 and 5
- Enterprise storage
Associated Products
Texas Instruments DS320PR810 Eight Channel Redriver
Linear repeater or redriver designed to support PCIe 5.0, CXL 2.0, and UPI 2.0, up to 32 Gbps.
Associated Dev Tools
Texas Instruments DS320PR810-SMP-EVM Redriver Evaluation Module
Features one DS320PR810 linear redriver that routes the redriver channels 0-3 to SMP connectors.
Texas Instruments DS320PR810-RSC-EVM Redriver Evaluation Module
Features DS320PR810 linear redrivers that can extend transmission distance of a PCIe Gen-5 x16 bus.

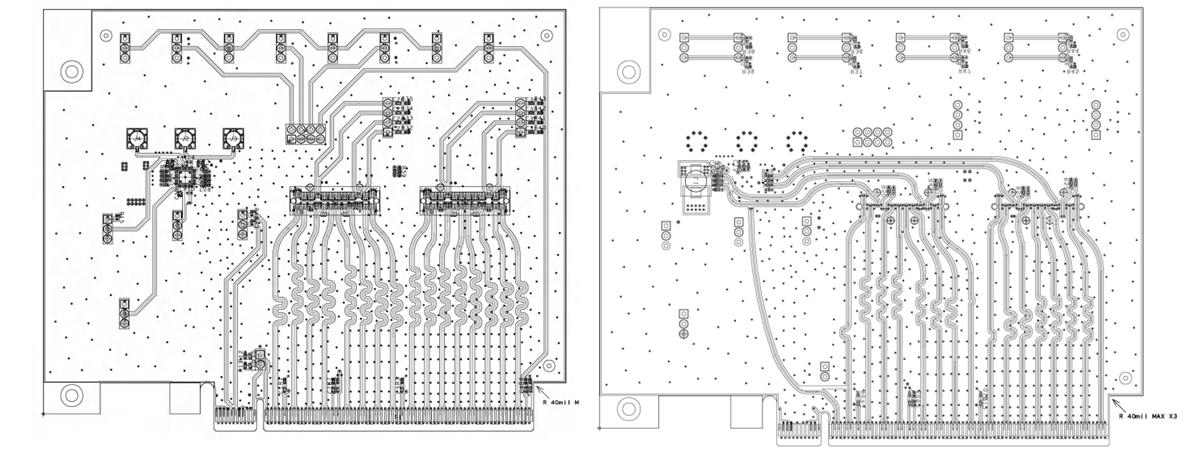

PCB Layout
