Texas Instruments DRV821xEVM Evaluation Modules
Texas Instruments DRV821xEVM Evaluation Modules are a complete solution for evaluating the DRV821x/8220 H-bridge motor drivers. The DRV821x/8220 are integrated motor drivers with four N-channel power FETs, charge pump regulator, and protection circuitry.
The TI DRV821xEVM Evaluation Modules include an MSP430™ microcontroller that is preprogrammed to take input from two dedicated analog potentiometers for PWM speed control of one or two brushed DC motors.
Features
- 1.65V to 11V operating voltage range
- 1.7A peak output current
- Multiple control input interfaces

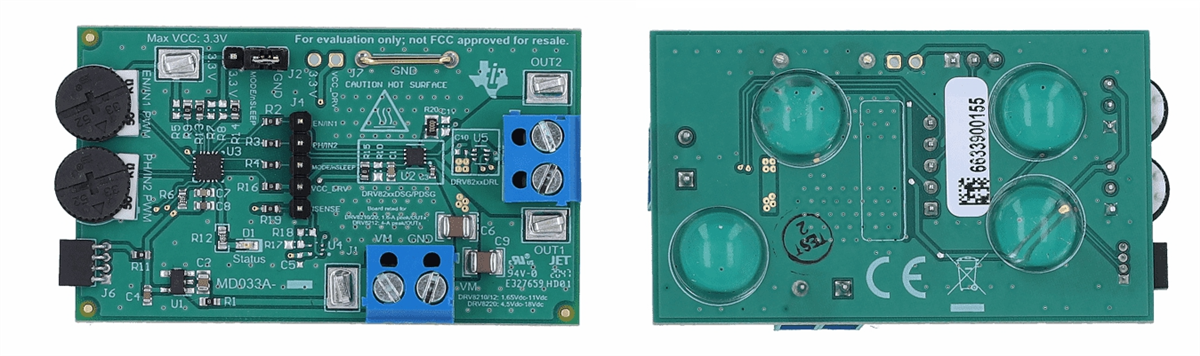

Front & Back Layout

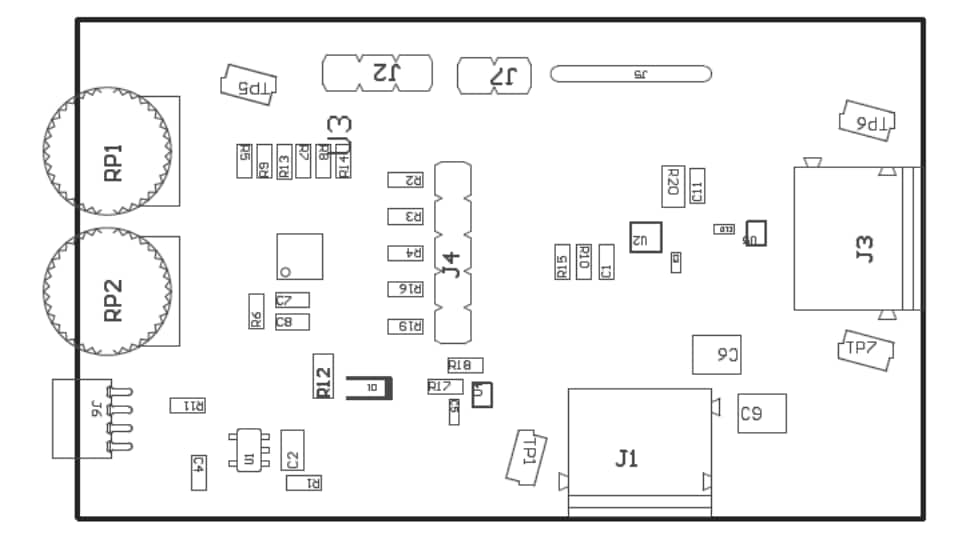

PCB (Assembly View)
.png "Texas Instruments DRV821xEVM Evaluation Modules")
MODE /nSLEEP header & PWM Pots
Related Products
Texas Instruments DRV8212 12V, 2A Low Voltage H-Bridge Motor Driver
Provides PWM, PH/EN, and half-bridge control interfaces and low-power sleep mode.
Texas Instruments DRV8212P H-Bridge Motor Driver
Offers PWM control with low power sleep mode, optimized for systems with lower current requirements.
Texas Instruments DRV8210 H-Bridge Motor Driver
Integrated motor driver with 4 N-channel power FETs, charge pump regulator & protection circuitry.
