Texas Instruments DLPLCR90XEVM Evaluation Module

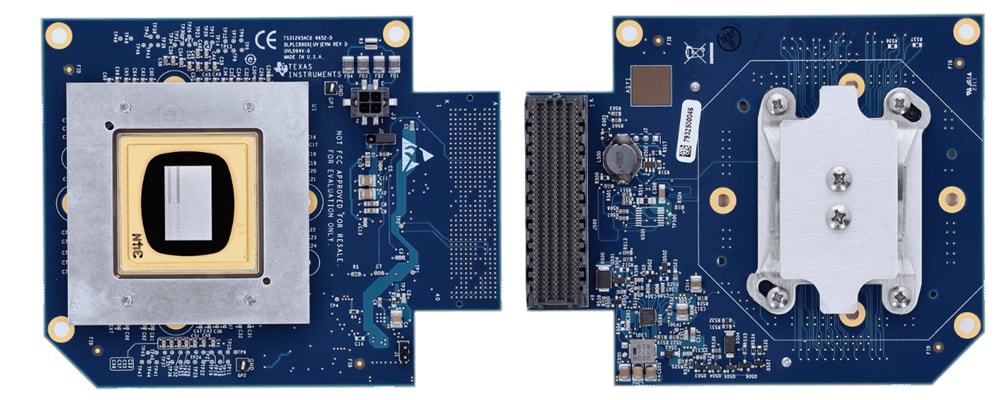

Texas Instruments DLPLCR90XEVM Evaluation Module includes the DLP9000X 0.9" high-speed WQXGA Type-A DMD containing 2560 x 1600 micromirrors with 7.56µm pitch. The TI DLPLCR90XEVM combined with the DLPLCRC910EVM allows users to control high-speed, pixel-accurate 1-bit patterns. The TI DLPLCR90XEVM platform implements flexibility and high speed for advanced patterning and imaging applications.
Features
- Supports 400nm to 700nm with 1-bit pattern rates up to 14,989Hz
- DLP9000X DMD has 2560 x 1600 mirrors with 7.56µm pitch
- DMD board with mounting holes for convenient mounting
- 12-inch HPC FMC cable for flexible positioning of the DMD on a bench top
Associated EVMs
Texas Instruments DLPLCRC910EVM Evaluation Module
Reference design allows quicker development cycles for users of the DLPC910 architecture.
Texas Instruments DLPLCR90XUVEVM Evaluation Module
Based on the DLP9000XUV 0.9" high-speed WQXGA UV Type A DMD containing 2560 x 1600 micromirrors.
Texas Instruments DLPLCR65FLQEVM Evaluation Module
Mounts the DLP6500FLQ 0.65 1080p Type A DMD, including 1920 x 1080 micromirrors with 7.56µm pitch.
