Texas Instruments DLP550HEEVM DMD Evaluation Module (EVM)
Texas Instruments DLP550HEEVM DMD Evaluation Module (EVM) can accelerate the prototyping time of a DLP 0.55-inch SVGA system when combined with the DLPC4430EVM. The Texas Instruments DLP550HEEVM provides a solution for evaluating the 0.55-inch SVGA digital micromirror device (DMD), which is designed to pair with the DLPC4430EVM and can display SPLASH, test patterns, and video from the HDMI source on the DMD.
Features
- SVGA (800 x 600) display resolution
- 13.68µm micromirror pitch
- ±12° micromirror tilt (relative to flat state)
- Corner illumination
- LVDS input data bus

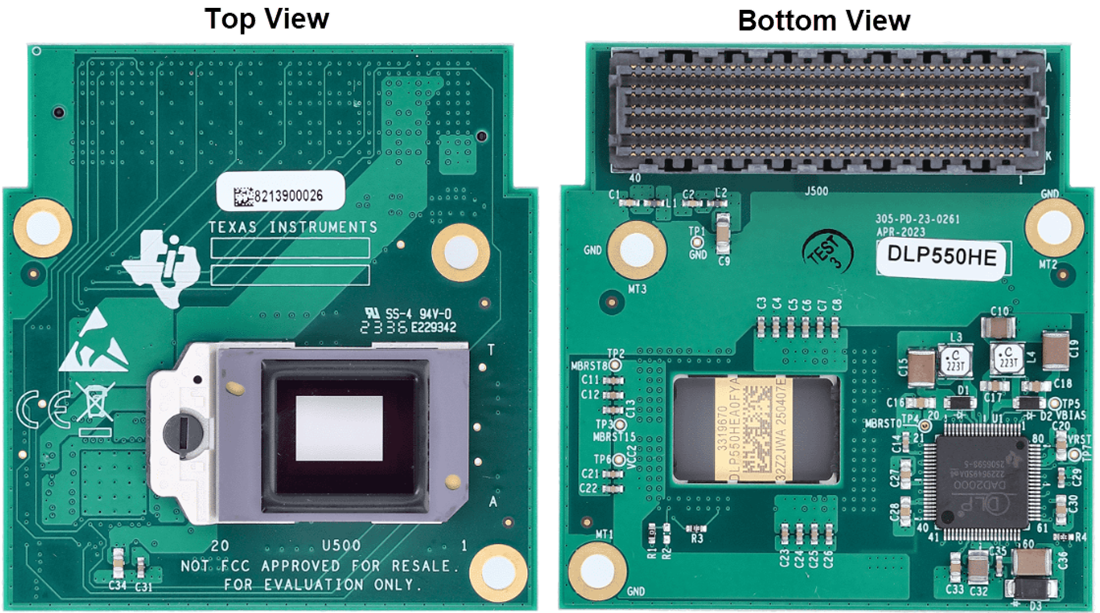

Board Layout
Related Product
Texas Instruments DLP550HE Digital Micromirror Device (DMD)
A digitally controlled MEMS SLM that enables bright, affordable SVGA display solutions.
Related Development Tool
Texas Instruments DLPC4430EVM Controller Evaluation Module (EVM)
When combined with other EVMs, it can accelerate the prototyping time of the DLP various systems.
