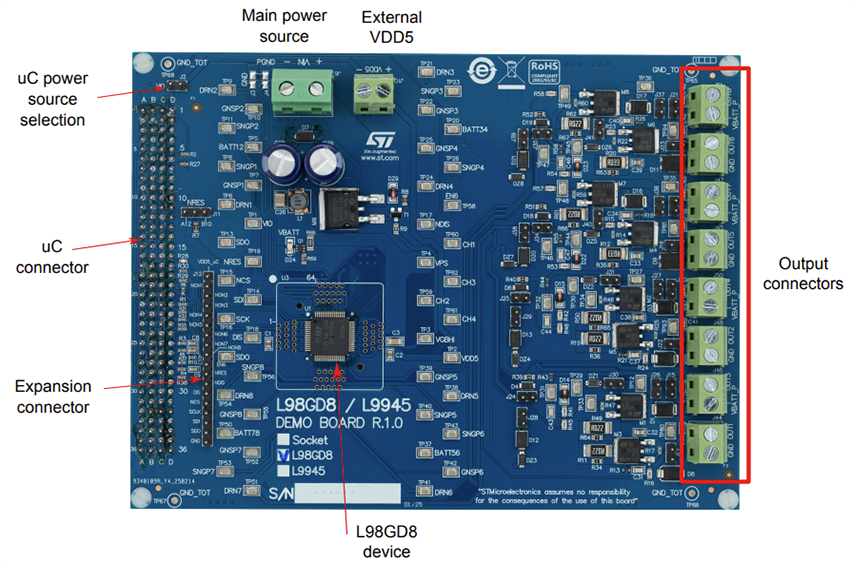

STMicroelectronics EVL-L98GD8 Evaluation Board

STMicroelectronics EVL-L98GD8 Evaluation Board is designed to evaluate the L98GD8 48V-rated smart power MOSFET pre-driver with advanced BCD technology. The L98GD8 flexible high-side/low-side configurable pre-driver drives NMOS and PMOS. The device can be configured as an independent eight high-side and low-side pre-driver, a two H-Bridge pre-driver, or two pick and hold pre-drivers by using SPI configuration and the jumper on the board. All channels are protected against short circuit, overcurrent, and over-temperature conditions. The STMicroelectronics EVL-L98GD8 board can be connected to the SPC56M-DIS, the Discovery+ board developed for the SPC563M64L5 32-bit MCU.

Features

3.8V to 48V voltage range
8-channel configurable MOSFET pre-driver
- High-side (N-channel and P-channel MOS)
- Low-side (N-channel MOS)
- H-bridge (up to 2x H-bridges)
- Peak and hold (2x loads)
Device register settings and the full diagnostic are available through the SPI

Access to all relevant pins by test points
Input signal connector compatible with the SPC56M-DIS (SPC563M64L5 Discovery+ evaluation board)
Possibility of connecting a generic microcontroller board by using a simple adapter

Applications

Automotive 12V, 24V, and 48V
Low-side, high-side, peak and hold, and H-Bridge load control
Designed for driving relays, motors, and all the resistive and inductive loads

Required Equipment

4V ÷ 48V power supply, up to 30A
SPC56 discovery board or microcontroller board that offers:
- SPI signals
- 12x GPIOs to drive the injector and ignition, and to monitor status channels and the enable pin
- +5V or 3.3V (V_CC)
