STMicroelectronics CS30 & CS70 Current Sense Amplifiers

STMicroelectronics CS30 and CS70 Current Sense Amplifiers measure small differential voltages on high-side shunt resistors and translate them into ground referenced output voltages. The gains are internally fixed. Wide input common-mode voltage ranges, low quiescent currents, and tiny packaging enables use in a wide variety of applications. The input common-mode and power supply voltages are independent. The current consumption below 360µA (300µA CS30) and the wide supply voltage range enable the power supply to be connected to either side of the current measurement shunt with minimal error.

Features

  • Independent supply and input common-mode voltages
  • Wide common-mode operating range
    • CS30: 2.8V to 30V
    • CS70: 2.9V to 70V in single-supply configuration, -2.1V to 65V in dual-supply configuration
  • Wide common-mode surviving range
    • CS30: -0.3V to 60V (load-dump)
    • CS70: -16V  to 75V (reversed battery and load-dump conditions)
  • Wide supply voltage range
    • CS30: 4V to 24V
    • CS70: 2.7V to 5.5V in single supply configuration
  • Low current consumption
    • CS30: ICC max = 300µA
    • CS70: ICC max = 360µA
  • Internally fixed gain: 20 V/V, 50 V/V, or 100 V/V
  • Buffered output
  • Package
    • CS30: SOT23-5L
    • CS70: TSSOP8

Applications

  • Wireless battery chargers
  • Portable equipment chargers
  • Precision current sources
  • Wearables

Related Products

STMicroelectronics Wearables

Motion and environmental sensors in a broad range of already available wearable applications.

Learn Moreo STMicroelectronics Wearables View Productspowiązany z STMicroelectronics Wearables

STMicroelectronics TSC21x Current Sense Amplifiers

Low-/high-side, bidirectional current sense amplifier featuring zero-drift architecture.

Learn Moreo STMicroelectronics TSC21x Current Sense Amplifiers View Productspowiązany z STMicroelectronics TSC21x Current Sense Amplifiers

STMicroelectronics TSC210 Current Sense Amplifiers

Zero-drift current sense amplifiers that can sense current via a shunt resistor.

Learn Moreo STMicroelectronics TSC210 Current Sense Amplifiers View Productspowiązany z STMicroelectronics TSC210 Current Sense Amplifiers

STMicroelectronics TSC201x Bidirectional Current Sense Amplifiers

Bidirectional current sense amplifier with a -20V to +70V common-mode voltage range.

Learn Moreo STMicroelectronics TSC201x Bidirectional Current Sense Amplifiers View Productspowiązany z STMicroelectronics TSC201x Bidirectional Current Sense Amplifiers

CS30 Application Diagram

Application Circuit Diagram - STMicroelectronics CS30 & CS70 Current Sense Amplifiers

CS70 Application Diagram (Single)

Application Circuit Diagram - STMicroelectronics CS30 & CS70 Current Sense Amplifiers

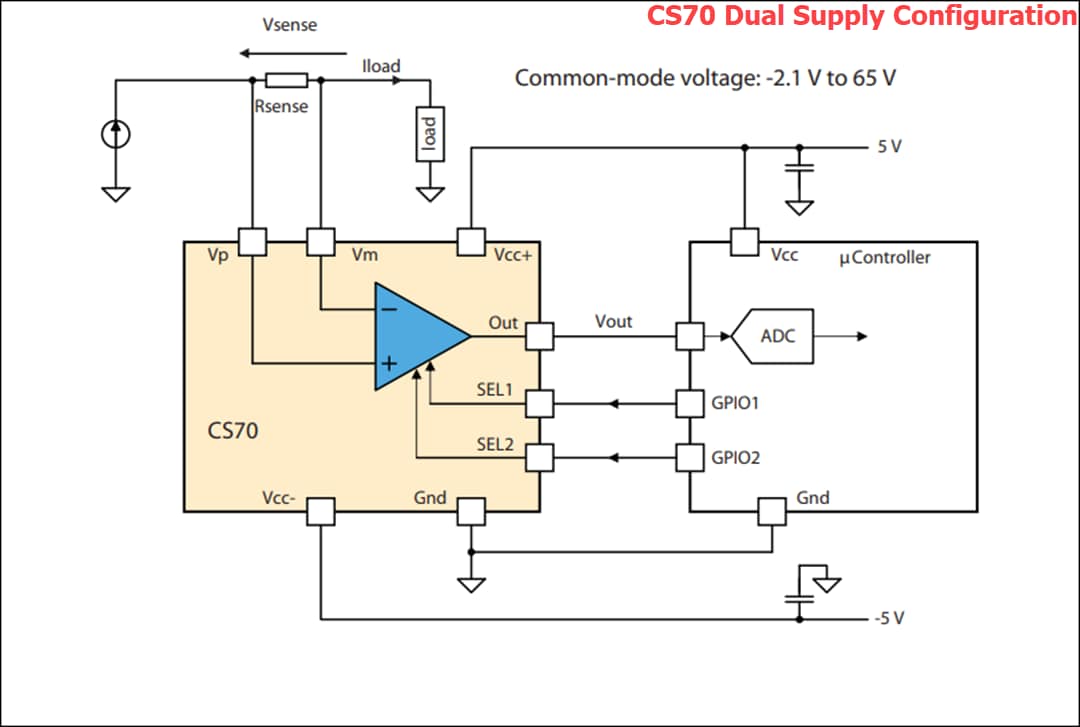

CS70 Application Diagram (Dual)
