STMicroelectronics VIPer06 High Voltage Converters
STMicroelectronics VIPER06 High Voltage Converters are offline converters with an 800V avalanche-rugged power section, a PWM controller, and a user-defined overcurrent limit. These converters provide open-loop failure protection, hysteretic thermal protection, soft startup, and safe auto-restart after any fault condition.
The VIPer06 devices are able to power itself directly from the rectified mains, eliminating the need for an auxiliary bias winding. Advanced frequency jittering reduces EMI filter cost. Burst mode operation and the device's very low power consumption both help to meet the standards set by energy-saving regulations.
Features
- 800V avalanche-rugged power section
- PWM operation with frequency jittering for low EMI
- Operating frequency:
- 30kHz for VIPER06Xx
- 60kHz for VIPER06Lx
- 115kHz for VIPER06Hx
- No need for an auxiliary winding in low-power applications
- <30mW standby power at 265VAC
- Limiting current with adjustable set point
- On-board soft-start
- Safe auto-restart after a fault condition
- Hysteretic thermal shutdown
Applications
- Replacement of capacitive power supplies
- Home appliances
- Power metering
- LED drivers
Related Products
STMicroelectronics VIPerPlus High Voltage Converters
Combines 800V avalanche-rugged MOSFET with state-of-the-art PWM circuitry.
Development Tools
STMicroelectronics EVLMG4L-IBCKFL Evaluation Board
Designed to be connected to a high voltage input DC source to drive one high voltage.
STMicroelectronics EVLMG4-500WIBCK Evaluation Board
Dimmable LED driver circuit reference design based on the MASTERGAN4, HVLED002, and VIPER06.
STMicroelectronics STEVAL-ISA096V1 Demonstration Board
Non-isolated Switched Mode Power Supply (SMPS) board designed in a buck-boost topology.
STMicroelectronics EVLGANSPIN1-3PH Reference Design Board
Based on the GANSPIN611 half-bridge GaN system-in-package & the STM32G431RB with Arm Cortex-M4 MCU.

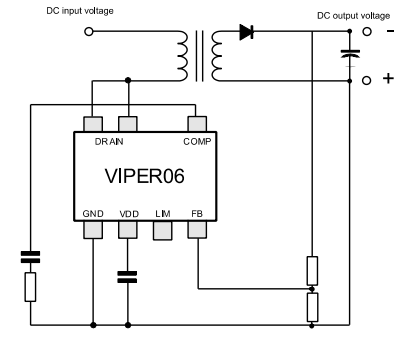

Typical Application Circuit
Block Diagram
