Renesas Electronics Precision TIG Welding Controller
Renesas Electronics Precision TIG Welding Controller implements Tungsten Inert Gas (TIG) welding, also known as gas tungsten arc welding, that uses a non-consumable tungsten electrode to produce a weld. Various industries use TIG welding for high-quality welding purposes, usually on thin metals, such as aluminum. The Renesas Precision TIG Welding Controller solution is a complete DC + AC/DC TIG programmable welding control system.
Features
- Precise, wide range, arc-current measurement on the secondary side
- Detection of ozone and other dangerous gases concentration
- Isolated Controller for High-side measurements/control
- IR multi-touch HMI display, operable with gloves
- Connected via WiFi/BLE
- Control circuitry for water cooling (enabling compact tool)
Applications
- High-class 230V DC + AC/DC TIG (WIG) welding machines
- Welding machines with water cooling

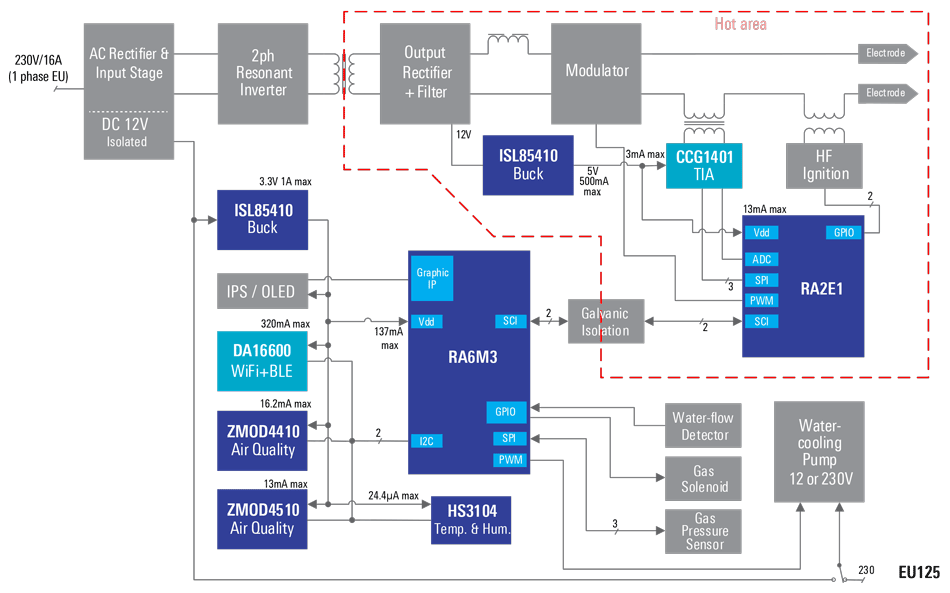

SYSTEM BLOCK DIAGRAM
FEATURED PRODUCTS
Renesas / Dialog DA16600 Wi-Fi® + BLUETOOTH® Low Energy Modules
Designed to easily add low-power Wi-Fi® an BLUETOOTH® Low Energy functionality to applications.
Renesas Electronics Zestaw mikrokontrolerów 32-bitowych RA6M3
Rdzeń Arm Cortex-M4F 120 MHz z kontrolerem TFT, akceleratorem 2D i dekoderem JPEG.
Renesas Electronics Mikrokontroler RA2E1 48 MHz ARM Cortex®-M23
Mikrokontroler podstawowy z rodziny RA bazujący na rdzeniu Arm® Cortex®-M23 48 MHz.
Renesas Electronics ISL85410 1A Buck Regulators
Synchronous buck regulator featuring an input range of 3V to 36V.
FEATURED SERIES
ADDITIONAL APPLICATION SOLUTIONS
See how Renesas' complementary product portfolios of Embedded Processing, Connectivity, Analog, and Power work together to deliver comprehensive solutions.
