PANJIT KBJ Glass Passivated Bridge Rectifiers
PANJIT KBJ Glass Passivated Bridge Rectifiers offer a reliable glass passivated solution, ideal for printed circuit boards. The KBJ Rectifiers feature a maximum repetitive peak reverse voltage range of 400V to 1200V. The devices are available in a lead-free KBJ-1 or KBJ-2 package with an operating temperature range of -55°C to +150°C.
Features
- Glass passivated chip junction
- UL recognition file number E526209
- Lead-free in compliance with EU RoHS 2.0 mechanical data
- Halogen-free according to IEC 61249 standard
Applications
- Computing power / desktop power
- Game console power
- Server power
- Air conditioner outdoor power board
- High power/high-efficiency power
- Home appliances power board

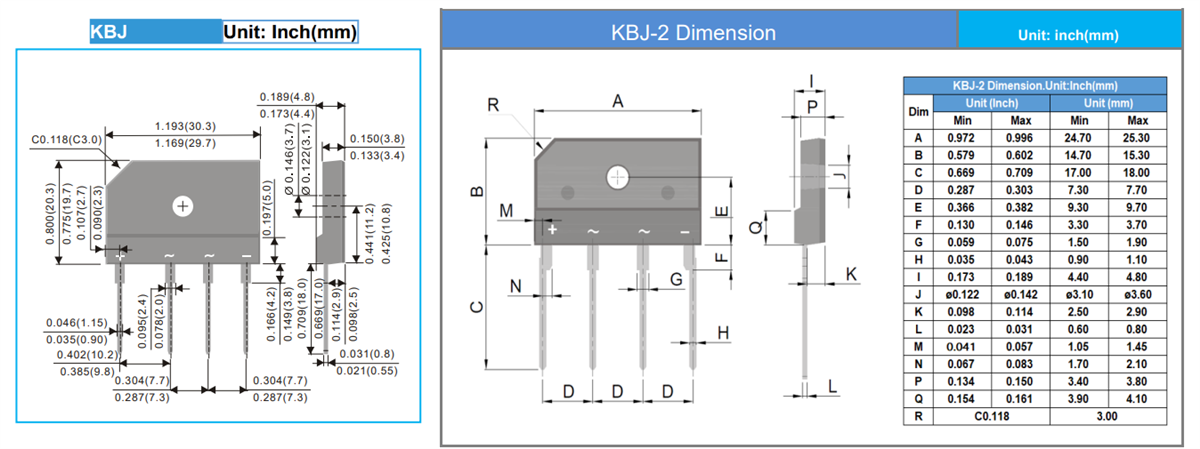

Dimensions inches (mm)
Additional Resources
