PANJIT GBJ Bridge Rectifiers

PANJIT GBJ Bridge Rectifiers are glass passivated rectifiers designed for printed circuit boards. These bridge rectifiers are designed with a green molding compound per the IEC 61249 standard. The GBJ bridge rectifiers are available with solderable terminals per MIL-STD-750 and are lead-free in compliance with EU RoHS 2.0. These bridge rectifiers offer a maximum repetitive peak reverse voltage of 1000V, 800V, 600V maximum RMS voltage, and 1000V maximum DC blocking voltage. Typical applications include desktop/workstation, server power supply, home appliances, telecom power supply, and SMPS.

Features

  • UL recognition file number E228882
  • Ideal for printed circuit boards
  • Lead-free in compliance with EU RoHS 2.0
  • Green molding compound as per IEC 61249 standard
  • Case:
    • GBJ-1 Package
  • Terminals:
    • Solderable as per MIL-STD-750 and method 2026

Specifications

  • 1000VRRM maximum repetitive peak reverse voltage
  • 700VRMS maximum RMS voltage
  • 1000VDC maximum DC blocking voltage
  • -55°C to 150°C operating junction temperature range

Applications

  • Desktop/workstation – 80+ Silver and Gold standard
  • Server power supply – 90+ Platinum and Titanium standard
  • Home appliances – air con
  • Telecom power supply – networking station and data center
  • Switched-Mode Power Supply (SMPS)

Dimensions

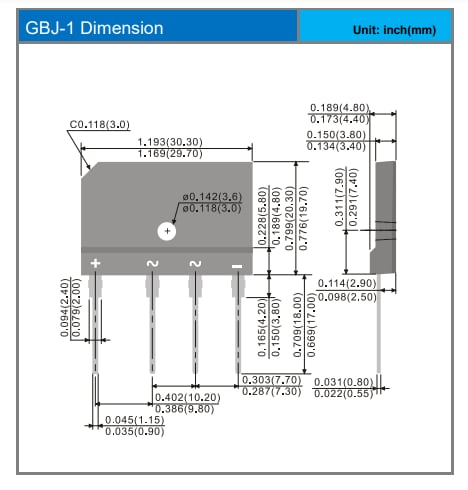

Mechanical Drawing - PANJIT GBJ Bridge Rectifiers

Related Rectifiers

PANJIT KBJB Low Profile Bridge Rectifiers

Devices feature a maximum junction temperature (Tj) of 150℃ with a current rating of 10A or 15A.

Learn Moreo PANJIT KBJB Low Profile Bridge Rectifiers View Productspowiązany z PANJIT KBJB Low Profile Bridge Rectifiers
View Results ( 12 ) Page
Numer części Karta charakterystyki If – prąd przewodzenia diody Max. udar prądowy
GBJA2506_T0_00301 GBJA2506_T0_00301 Karta charakterystyki 25 A 720 A
GBJA3506_T0_00301 GBJA3506_T0_00301 Karta charakterystyki 35 A 720 A
GBJA1506_T0_00301 GBJA1506_T0_00301 Karta charakterystyki 15 A 480 A
GBJA1508_T0_00301 GBJA1508_T0_00301 Karta charakterystyki 15 A 480 A
GBJA3508_T0_00301 GBJA3508_T0_00301 Karta charakterystyki 35 A 720 A
GBJA2508_T0_00301 GBJA2508_T0_00301 Karta charakterystyki 25 A 720 A
GBJA1510_T0_00301 GBJA1510_T0_00301 Karta charakterystyki 15 A 480 A
GBJA2510_T0_00301 GBJA2510_T0_00301 Karta charakterystyki 25 A 720 A
GBJA3510_T0_00301 GBJA3510_T0_00301 Karta charakterystyki 35 A 720 A
GBJ15M_T0_00101 GBJ15M_T0_00101 Karta charakterystyki 15 A 400 A
