Omron Electronics B3FS-4 SMD Tactile Switch
Omron Electronics B3FS-4 SMD Tactile Switch features distinctive snapping action and extended mechanical/electrical durability. Omron Electronics' B3FS-4 SMD Tactile Switch is 12mm x 12mm with a height of 4.2mm and is packaged with embossed taping for automatic mounting. Series now includes high-force and projected plunger options.
Features
- Size 12mm x 12 mm
- Service life 3 million operations
- Includes Key Top Integrated type
- Operating temperature -25 to +70ºC
- RoHS Compliant
Applications
- Building automation
- Medical
- Home appliance

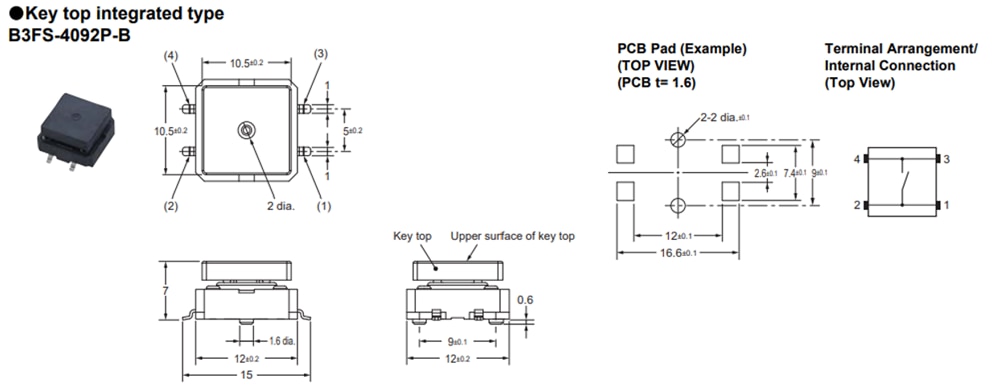

B3FS-4 Key top Integrated Type
B3FS Types
Related Switches
Omron Electronics BF3S SMT Tactile Switches
6mm x 6mm surface-mount switches for high-density mounting.
