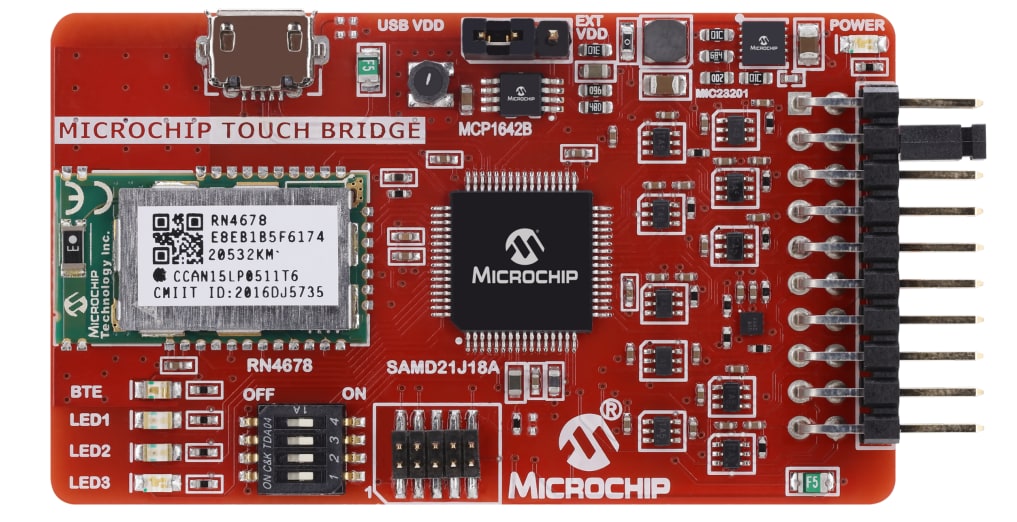

Microchip Technology EV96R35A Touch Bridge Kit
Microchip EV96R35A Touch Bridge Kit is a tuning bridge for touch designs delivering wired (USB) and wireless BLUETOOTH® (BT) touch tuning. The EV96R35A is the bridge for all touch solutions from Microchip, from turnkey touch products to MCUs running Microchip’s touch library.
• Touch turnkey products families (MTCH, CAP, and AT42QT)
• Touch library solutions covering PIC®, AVR®, SAM, and PIC32 MCUs
The Microchip Touch Bridge firmware is supplied through MPLAB Discover and upgraded in features.
Features
- Input supply range 1.8V to 5V
- Built-in BLUETOOTH® RN4678 module
- ATSAMD21 Programmable host device
- Level shifter between host MCU and external touch devices to enable tuning on all voltage rails
- Communication supports PC for visualization:
- USB
- BLUETOOTH
- Communication ports to target device:
- UART
- SPI
- I2C
- GPIO
- Header to connect target board
- Header option to the kit as MCP2221A breakout module
- LEDs for Comm’s status
Associated Dev Tools
Microchip Technology Curiosity Nano Touch Adapter (AC80T88A)
Platform to ease the connection between Curiosity Nano kits and Explained-Pro touch extension board.
Microchip Technology MCP2221 Breakout Module
A development and evaluation platform for the MCP2221 USB-to-UART/I²C Converter.
Microchip Technology AT42QT1010 Evaluation Kit
Designed to evaluate the AT42QT series of capacitive touch sensors.
Associated Products
Microchip Technology SAM D21 Arm® Cortex®-M0+ Microcontrollers
Low-power MCUs that range from 32- to 64-pins with up to 256KB Flash and 32KB of SRAM.
Microchip Technology RN4678 BLUETOOTH® Dual Mode Modules
Designed with an integral ceramic chip antenna and RF shield.
PCB Layout
Quick Start
Power Supply Block Diagram
