MEAN WELL RSDW10 & RDDW10 DC-DC Converters
MEAN WELL RSDW10 and RDDW10 DC-DC Converters feature 10W output power, international standard pins, up to 88% high efficiency, 3KVDC I/O isolation voltage, and 4:1 wide input range. These module-type converters provide continuous short-circuit protection and have a wide input voltage range from 43V to 160V. The converters provide an output voltage range of 3.3V, 5V, 12V, and 15V for single output and ±5V, ±12V, and ±15V for dual output. MEAN WELL RSDW10 and RDDW10 DC-DC Converters are available in a DIP24 package with standard pinout. Typical applications include transportation systems, industrial control facilities, wireless networks, harsh environments, and more.
Features
- Compliance with EN 50155 railway standard
- DIP24 package with standard pinout
- 4:1 wide input range
- -40°C to +85°C wide operating temperature range
- No minimum load required
- Fully encapsulated
- Overload, overvoltage, input undervoltage, and continuous short-circuit protection
- 3KVDC I/O isolation
- Remote on/off control
- 3-year warranty
Applications
- Bus, tram, metro, and railway systems
- Telecom / datacom systems
- Wireless networks
- Industrial control facilities
- Instruments
- Analyzers
- High vibration
- Harsh environments

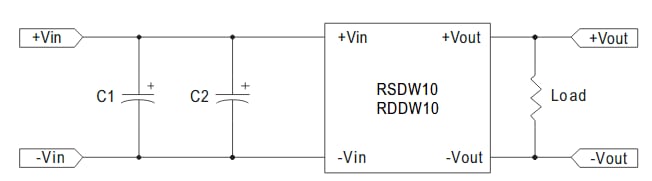

Application Circuit

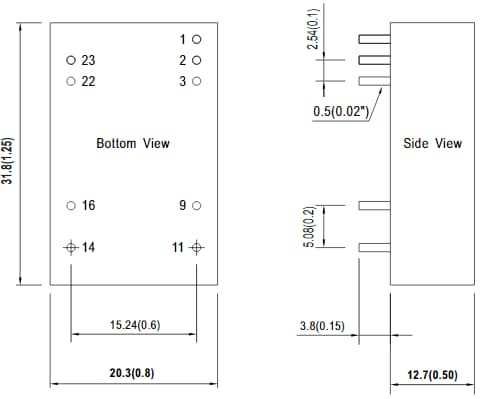

Mechanical Dimensions
