Infineon Technologies EZ-PD™ CCG7SC USB-C PD & DC-DC Controllers

Infineon Technologies EZ-PD™ CCG7SC Single-port USB-C™ Power Delivery and DC-DC Controllers are highly integrated for single and multiport charging applications. The EZ-PD CCG7SC complies with USB-C and PD specifications. The Infineon PD solution with DC-DC controller includes an on-chip 32-bit ARM® Cortex®-M0 MCU, which allows the implementation of custom functions such as source policy management, load-sharing, and system peripheral control using PWMs, I2C, and SPI.

Features

  • USBPD
    • Supports 1x USBPD port
    • Supports USBPD 3.1, including programmable power supply (PPS) mode
    • Extended data messaging
  • Type-C
    • Configurable resistors Rp and Rd
    • VBUS provider NFET gate driver
    • Integrated 100mW VCONN power supply and control
  • 1x buck-boost controller, 150kHz to 600kHz switching frequency
  • 4.5V to 24V input, 40V tolerant
    • 3.3V to 21.5V output
    • 20mV voltage and 50mA current steps for PPS
    • Supports selectable pulse skipping mode (PSM) and forced continuous current/conduction mode (FCCM)
    • Supports soft start
    • Programmable spread spectrum frequency modulation for low EMI
  • System-level fault protection
    • On-chip VBUS overvoltage protection (OVP), overcurrent protection (OCP), and undervoltage protection (UVP)
    • VBUS to CC short protection
    • Under-voltage lockout (UVLO)
    • Supports over-temperature protection through an integrated ADC circuit and internal temperature sensor
    • Supports connector and board temperature measurement using external thermistors
  • 1x legacy/proprietary charging block, supports Qualcomm QC 2.0/3.0/4.0/5.0, Apple charging 2.4A, Samsung adaptive fast charging (AFC), and USB BC 1.2
  • 32-bit MCU subsystem
    • 48MHz Arm® Cortex®-M0 CPU
    • 128KB flash
    • 16KB SRAM
    • 32KB ROM
  • Peripherals and GPIOs
    • Up to 13x GPIOs, including 2x overvoltage GPIOs
    • 2x 8-bit ADCs
    • 8x 16-bit timer/counter/PWM (TCPWM)
  • 3x SCBs for communication interfaces (I2C/SPI/UART/LIN)
  • Integrated oscillator eliminating the need for an external clock
  • Power supply
    • 4V to 24V input (40V tolerant)
    • 3.3V to 21.5V output
    • Integrated LDO capable of 5V at 75mA
  • 40-pin QFN (6mm x 6mm) package with -40°C to +105°C extended industrial temperature range

Applications

  • USB-C multiport chargers and adapters
  • USB-C docking downstream facing ports
  • Wireless/PD chargers
  • Cigarette lighter adapters (CLAs)

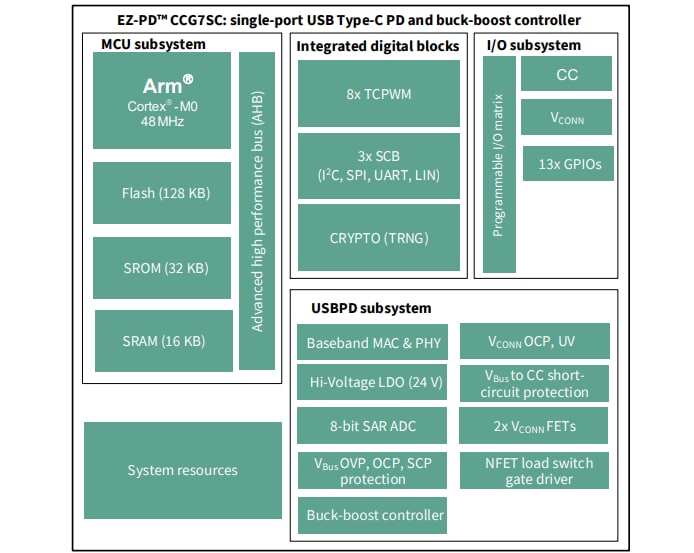

Logic block diagram

Block Diagram - Infineon Technologies EZ-PD™ CCG7SC USB-C PD & DC-DC Controllers

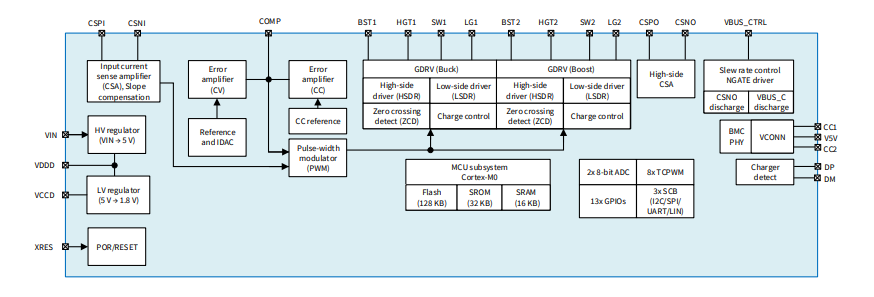

Functional block diagram

Block Diagram - Infineon Technologies EZ-PD™ CCG7SC USB-C PD & DC-DC Controllers

Buck-boost schematic with external components

Schematic - Infineon Technologies EZ-PD™ CCG7SC USB-C PD & DC-DC Controllers
