Digi EX12 LTE Cellular Extenders
DIGI EX12 LTE Cellular Extenders provide primary and failover solutions that deliver cellular access and RS-232 for existing infrastructure and Out-Of-Band (OOB) management. This extender includes an embedded LTE Cat 4 cellular modem with dual SIM slots to protect against downtime by automatically switching to a secondary cellular carrier. This is done if the primary connection loses connectivity. The EX12 extender can be coupled with a wireline internet connection to provide dual-WAN connectivity and wired-to-wireless backup. This approach maximizes uptime and ensures business connectivity and continuity for systems demanding high network availability, such as point-of-sale, mobile kiosks, and digital signs.
The EX12-R004-OUS Extender offers a remote mounting kit, 2-port 10/100; RJ-45, RS-232; US and Canada, LTE / HSPA+ Cat 4; and includes antennas, power supply, site survey battery, PoE injector and mounting accessories.
The EX12-0004-OUS Extender without a remote mounting kit offers 2-port 10/100; RJ-45, RS-232; US and Canada, LTE / HSPA+ Cat 4; and includes antennas and a power supply.
Features
- Redundant connectivity with dual SIMs and DIGI SureLink™
- Optimized connectivity to any Ethernet device
- Built-in DIGI TrustFence® for device security, device identity, and data privacy
- Site survey battery pack to identify the location for optimum cellular reception
- Remote mounting kit for quick and easy installation
- Automatic cellular carrier detection and switching with Carrier Smart Select™
- DIGI remote manager software for easy setup, mass configuration, and management
- Associated LTE Dipole SMA 1-3dBi 698-960/1710-2170/2500-2700MHz RAL9003 signal, white antenna
Specifications
- 256MB RAM and 512MB flash memory
- 127mm x 127mm x 25mm dimensions
- 0°C to +40°C operating temperature range
- 18VDC, 1A power input
Additional Information
View Associated SIM Cards
Soracom Global IoT Multi-Carrier ecoSIM Cards
Offers 2FF mini, 3FF micro, and 4FF nano sizes in one package and securely bypasses public internet.

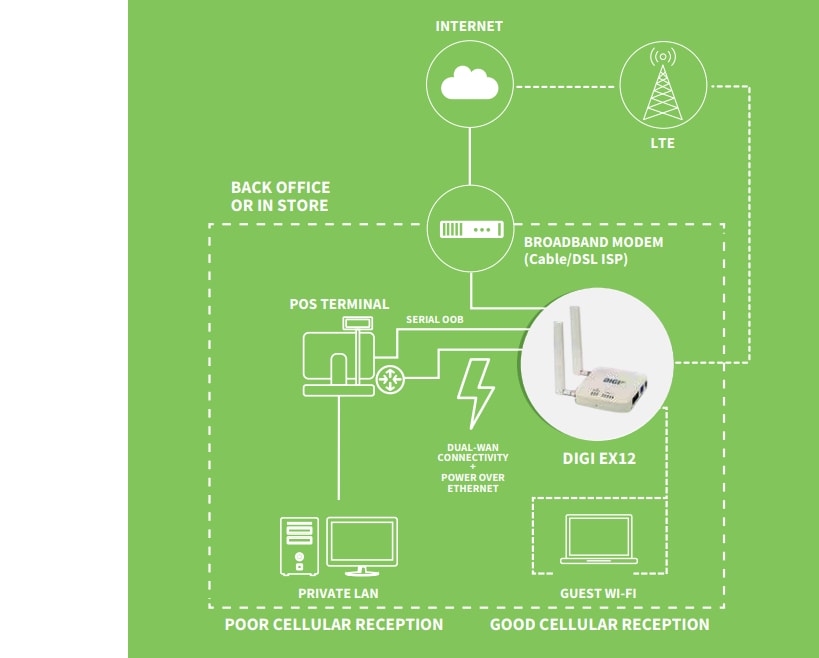

Application Diagram
Layout
Associated Products
Digi EX15 LTE Cellular Extender
Offer gigabit Ethernet and Wi-Fi for applications that can't allow network downtime.
Digi 6330-MX LTE Routers
Designed to provide Gigabit Ethernet and Wi-Fi® connectivity to eliminate downtime for businesses.
Digi Routery LTE bez WiFi 6335-MX
Przyspieszają rozwiązania sieciowe i eliminują czasy przestoju, oferując łączność przez Ethernet gigabitowy.
Digi 6350-SR LTE Routers
High-performance devices designed to accelerate networking solutions and eliminate downtime.
Digi 6355-SR LTE Routers w/o Wi-Fi®
High-performance devices designed to accelerate networking solutions and eliminate downtime.
Digi 6310-DX LTE Routers
Designed to provide a reliable and scalable business continuity failover solution at any location.
Digi Remote Manager®
Device management for configuration, firmware updates, and security.
Videos
| Numer części | Karta charakterystyki | Opis |
|---|---|---|
| EX12-R004-OUS |  |
Cellular Modules Digi 360 Cellular Solution Package for Digi EX12 (1 year) - LTE, Cat 4, US/CAN, RS-232, 1 Serial Port, Dual Ethernet. Includes: PSU, PoE injector, mounting accessories, ethernet cables, and antennas. |
| EX12-0004-OUS | |
Routers Digi 360 Cellular Solution Package for Digi EX12 (1 year) - LTE, Cat 4, US/CAN, RS-232, 1 Serial Port, Dual Ethernet. Includes: PSU and antennas, no remote mounting kit. |
