Banner Engineering L-GAGE® LE250/550 Analog-Discrete Laser Sensors
Banner Engineering L-GAGE® LE250/550 Analog-Discrete Laser Sensors are visible, bore-sighted laser displacement sensors designed for color-insensitive measurements. These sensors include models covering various ranges, measurement performance, and spot sizes. The analog-discrete laser sensors feature power LED indicators, push buttons, and sensing range options up to 1 meter. These L-GAGE® LE250/550 distance sensors operate from 12VDC to 30VDC supply voltage range and -20°C to 55°C temperature range. The analog-discrete laser sensors are ideally used in industrial measurement applications.
The LE250 analog-discrete laser sensors measure up to 400mm and feature 0.02mm resolution and a small laser spot for detecting small features and also offer good performance across changing colors and reflectivity. The LE550 analog-discrete laser sensors measure up to 1 meter, feature sub-millimeter resolution across the entire range, and offer a larger spot for better measurement stability across uneven surfaces.
Features
- Easy to set up and use with a 2-line, 8-character display
- Repeatability for challenging targets, from shiny metal to black rubber
- Power LED indicator
- Push buttons
- Various sizes of visible red laser, depending on target size, distance, and color characteristics
- Sensing range options up to 1 meter
Specifications
- 12VDC to 30VDC operating supply voltage range
- <70mA at 24VDC current consumption at normal run mode
- -20°C to 55°C operating temperature range
- -30°C to 65°C storage temperature range
Applications
- Roll diameter measurement of dark material
- Sheet metal roll diameter
- Case stacker inventory and presence detection
- Laser sensors measure paper rolls in a range of colors and automatically scale output
- Carton profiling
- Engine block part-in-place detection
- Roll diameter on labels
- Inspecting small connectors
- Plastic roll diameter measurement
- Sensors to measure movement range
- Loop control
- Thickness measurement
- Positioning
Accessories
- Brackets:
- Double-Ended Cordsets:
- Single-Ended cordsets:
- Replacement Window:
Videos
Additional Resources
- LE Series Sell Sheet
- LE250/550 Analog/Discrete Laser Gauging Sensors - Instruction Manual
- LE250/550 Dual Discrete Laser Gauging Sensors - Instruction Manual
- LE250/550 Laser Gauging Sensor With IO-Link - Instruction Manual
- LE EZ Set Up
- IO-Link Data Reference Guide: LE Series
- L-Gage LE250/550 Gauging Sensor With IO-Link Quick Start Guide
- L-Gage LE250 and 550 Dual Discrete Laser Gauging Sensors - Quick Start Guide
- L-Gage LE250/550 Analog/Discrete Laser Gauging Sensors- Quick Start Guide
- Analog Laser Measurement Sensor Comparison
Related Sensors
Banner Engineering L-GAGE® LM Laser Sensors
Support IO-Link communication with analog and discrete (switched) outputs.
Banner Engineering Laser Distance Measurement Sensors
Offers a visible sensing beam, extended range, and precise detection capabilities.
Banner Engineering LTF Long-Range Time-of-Flight (ToF) Laser Sensors
Feature high-performance, easy-to-use sensors designed for precise and long-distance measurements.
Banner Engineering Q4X Series Photoelectric Sensors
Class I laser CMOS measuring sensors with a 0 to 10V output rating to represent distance measured.
Banner Engineering Q5X Photoelectric Sensors
High-power, problem-solving, multi-function laser sensors in industry-standard rectangular housing.
Banner Engineering Q5Z Global Laser Measurement Sensor
Offers a range of up to 1800mm, dual outputs, IO-Link, and bright indicators that provide feedback.
Banner Engineering Q2X Series Miniature Photoelectric Sensors
Detect targets up to 3.3m away and sense targets such as dark totes and shiny poly bags.

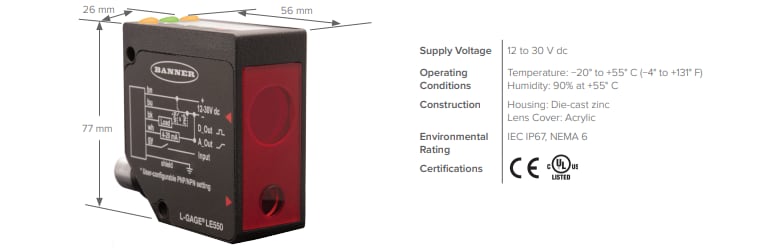

Dimension Diagram
| Numer części | Seria | Rodzaj produktu | Odległość wykrywania | Napięcie robocze zasilania | Wysokość | Długość | Szerokość | Styl mocowania |
|---|---|---|---|---|---|---|---|---|
| LE550KQP | LE550 | Distance Sensor Modules - Finished Units | 100 mm to 1 m | 12 VDC to 30 VDC | ||||
| LE550I W/30 | LE550 | Distance Sensor Modules - Finished Units | 100 mm to 1 m | 12 VDC to 30 VDC | 60 mm | 56 mm | 26 mm | Cable |
| LE250UC1Q | LE250 | Distance Sensor Modules - Finished Units | 100 mm to 400 mm | 12 VDC to 30 VDC | 60 mm | 56 mm | 26 mm | Thread |
| LE250I | LE250 | Distance Sensor Modules - Finished Units | 100 mm to 400 mm | 12 VDC to 30 VDC | 60 mm | 56 mm | 26 mm | Cable |
| LE250IQ | LE250 | Distance Sensor Modules - Finished Units | 100 mm to 400 mm | 12 VDC to 30 VDC | 60 mm | 56 mm | 26 mm | Thread |
| LE250KC1Q | LE250 | Distance Sensor Modules - Finished Units | 100 mm to 400 mm | 12 VDC to 30 VDC | 60 mm | 56 mm | 26 mm | Thread |
| LE250KQ | LE250 | Distance Sensor Modules - Finished Units | 100 mm to 400 mm | 12 VDC to 30 VDC | 60 mm | 56 mm | 26 mm | Thread |
| LE550IQ | LE550 | Distance Sensor Modules - Finished Units | 100 mm to 1 m | 12 VDC to 30 VDC | 60 mm | 56 mm | 26 mm | Thread |
| LE550UQ | LE550 | Distance Sensor Modules - Finished Units | 100 mm to 1 m | 12 VDC to 30 VDC | 60 mm | 56 mm | 26 mm | Thread |
| LE250IC1Q | LE250 | Distance Sensor Modules - Finished Units | 100 mm to 400 mm | 12 VDC to 30 VDC | 60 mm | 56 mm | 26 mm | Thread |
