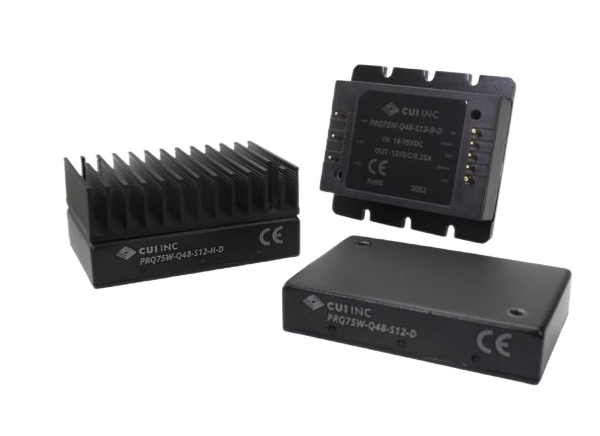

CUI Inc PRQ75W-D DC-DC Converters
CUI Inc PRQ75W-D DC-DC Converters offer a 75W isolated output rating, 18VDC to 75VDC input voltage range, and up to 93% efficiency. These converters feature a quarter-brick package with industry-standard pin-out and meet EN 62368-1 standards. They are available with a heat sink or base plate. PRQ75W-D converters have a remote on/off and provide output short circuit, overcurrent, overvoltage, and overtemperature protection. CUI Inc PRQ75W-D DC-DC Converters operate in the -40°C to +85°C temperature range.
Features
- 75W isolated output
- Quarter-brick package with industry-standard pin-out
- Ultra-wide input voltage range
- Single regulated output
- High efficiency up to 93%
- Remote on/off
- Output short circuit, overcurrent, overvoltage, and overtemperature protection
- 2250VDC isolation
- Meets EN 62368-1 standards
- Available with heat sink or base plate
View All
CUI Inc PRQ Isolated DC-DC Converters
Quarter-brick converters offered in 75W, 100W, 150W, and 200W with a 4:1 input range.
